PVC U type edge banding making machine
post time : 2015-07-17  |  view : 2,378 views  |  font size adjust : 16px   14px   12px

PVC U type edge banding making machine 】or【 PVC buckle edge banding making machine 】is one of our advantage products , xinda precision machinery company has focused on plastic machinery over 20 years with rich experience and strong technology , our machinery has exported to over 20 countries , such as Iran , Vietnam , UAE , Africa , Germany , America , etc.

according to the customers’ feedback and market demands , we continue to perfect the design and quality , we promise you the top quality and the turn-key service including installation , test running and training workers in your local factory . we are your trustworthy partner ! we believe that our cooperation will benefit both of us .please contact Mr John Yu to get more details . Tel : +86 (0) 13301561523 ; Email: admin@xinda-machinery.com

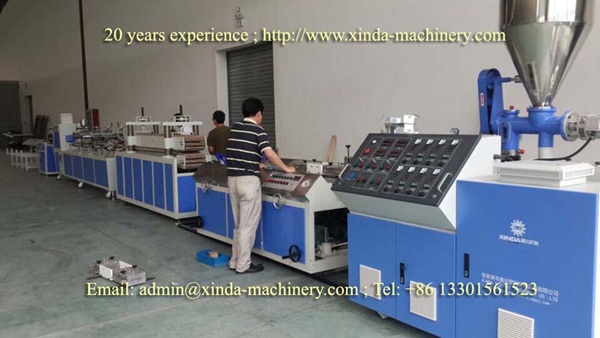

The PVC buckle edge banding production line adopt the twin screw extruder , according to the many years production experience & the feedback from our customers , we continual improve the screw to high productivity and better plasticizing effect . and the special design make the screw & barrel is more easy to discharge for maintenance . the main motor equip with the famous brand SIEMENS motor , converter control , OMRON temperature control meter , the top quality spare parts ensure the whole production line quality reliable . the auxiliary equipments consist of vacuum calibration platform , hauling off unit , automatic cutter , online printing machinery , etc .

PVC U type edge banding production process : screw feeder – mixer unit , the PVC raw materials mix enough in the hot mixer unit till the temperature reach to about 90 degree , then the hot raw materials will discharge into the cooling mixer unit automatically , about 5-8 minutes ,the hot raw materials temperature down to 40-50 degree , then it discharge itself . then the spring feeder will feed the mixed raw materials into the extruder , via extrusion & plasticizing , mould , calibration unit , vacuum cooling system , hauling off unit , printing online , stack . the cutter equip with the PLC , it can set different length at customer’s demands and cut automatically .

The auxiliary machines equip with the PLC control system , easy operate and run smoothly , for the new investor , we would supply the turn-key service include the workshop layout design , raw materials supply , workers training , installation , etc .

Application

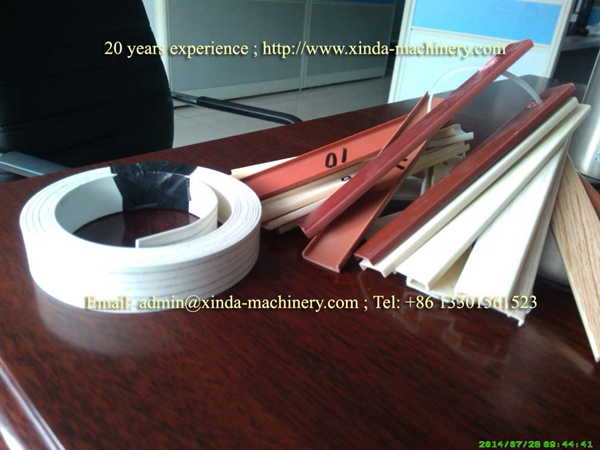

The PVC buckle edge banding production line is to produce the various PVC “U” type edge banding , flat edge banding , even other shape profiles . based on customer’s demands , we can design the double output or four output , it increase the productivity largely . the PVC buckle edge banding surface can be print different wonderful patter freely .

Service
1. special design the production line at customer’s different demands , supply the workshop layout design , installation and test run in customer’s factory .
2. supply the design of the cooling water pipes layout .
3. supply 12 months quality guarantee .
4. help customers to source the raw materials , production formula , production cost account , etc.
5. supply long-term technology support .

PVC U type edge banding making machine

PVC U type edge banding making machine

PVC U type edge banding making machine

PVC buckle edge banding production line

PVC buckle edge banding production line

PVC U type edge banding extrusion line

PVC U type edge banding extrusion line

PVC furniture edge banding extruder

PVC furniture edge banding extruder
