PVC corrugated pipe line
post time : 2015-07-08  |  view : 1,990 views  |  font size adjust : 16px   14px   12px

Xinda machinery Company is a professional manufacturer of plastic machinery , the 10-1000mm PVC corrugated pipe production line is our advantage products , we have focus on the plastic machinery over 21 years with rich experience and strong technology support .we have expanded our business 25 countries & whole Chinese market , include the Middle East countries , Southeast Asia market , Africa market , Germany & Canada . our machinery won the wide support from the worldwide market owing to the perfect quality , reasonable design , high automatic degree , easy operation , please contact Mr John Yu to get more details information . Tel : +86 (0) 13301561523 ; Email: admin@xinda-machinery.com

Dia. (mm)

 Extruder Forming unit Cutter Belling machine Total power (kW)

500-1000ID

 SJSZ95 SBZ1000 QG9030 SBK1000 440
200-500ID SJSZ92 SBZ500 QG5020 SBK5020A 300
110-250OD SJSZ80 SBZ250A QG2550A SBK2550 215
 63-160OD SJSZ65 SBZ160 QG160A SBK2063 160
16～50OD SJSZ51 SBZ50 – –

–

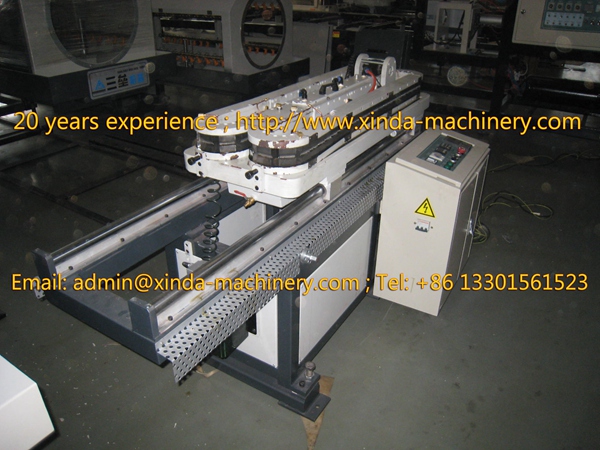

XDZ50PE/PVC / PP single wall corrugated pipe forming machine / specification : 20-50mm

PVC corrugated pipe line

PVC corrugated pipe line / Max speed : 25m/min



 PVC 16-50mm (OD) single wall corrugated pipe line

double wall corrugated pipe line

Dia. (mm) Extruder Forming unit Cutter Belling machine Total power (kW)
16～50OD SJSZ51 SBZ50 – – –



PVC 63-160mm（OD）double wall corrugated pipe line

PVC corrugated pipe line

Machine Model Power G.W. Character
Double screw extruder SJSZ–65 37kw 4500kg Big extrusion , abrasion resistance
Extrusion head Φ63-Φ160 13 kw — Raw material : 38CrMoAl
Forming block Φ63-Φ160 — — Raw material : 40Cr
Forming unit SBZ160 7kw 3200kg Automatic running with extruder ; auto-lubrication , air-cooling & water cooling
Cutter QG160A 0.75kw 500kg Recycled blade cutting
Auto belling machine SBK2063 8.1kw 2500kg PLC + air cooling



 PVC110-250mm（OD）double wall corrugated pipe production line

PE PP PVC corrugated pipe line

Dia. (mm) Extruder Forming unit Cutter Belling machine Total power (kW)
110-250OD SJSZ80 SBZ250A QG2550A SBK2550 215



PVC200-500mm（OD）double wall corrugated pipe production line

 double wall corrugated pipe machinery

Consist Model Power G.W. Characters
Extruder SJSZ-92 119kw 8500kg Big extrusion , abrasion resistance
Extruder head Φ200-500mm Max 47.5kw — Material : 40Cr
Forming block Φ200-500mm — — Special Al material , high rigid ,abrasion resistance`
Forming machine SBZ500 12kw 8500kg Horizontal type , easy operation ,emergency backward function
Cutter QG5020 2.25kw 2100kg Hydraulic high speed chipless cutting
Belling machine SBK5020A 30.05kw 5500kg PLC control



PVC500-1000mm double wall corrugated pipe production line

PVC double wall corrugated pipe line

Name Model Power G.W. Characters
Extruder SJSZ-95 132kw 8700kg Big extrusion , abrasion resistance
Extrusion head Φ630-Φ1000mm Max: 120kw — Material : 40Cr
Forming block Φ630-Φ1000mm — — Quality Al alloy
Forming unit SBZ1000 49.5kw 30000kg CAN control system
Cutter QG9030 3kw 3200kg Hydraulic high speed cutting
Belling machine SBK1000 61 6800kg PLC control
