63-160mm PVC pipe line
post time : 2015-07-09  |  view : 7,689 views  |  font size adjust : 16px   14px   12px

Xinda precision machinery Company. is a professional manufacturer of plastic machinery , we have focus on the plastic machinery over 21 years with rich experience and strong technology support .we have expanded our business 25 countries & whole Chinese market , include the Middle East countries , Southeast Asia market , Africa market , Germany & Canada . our machinery won the wide support from the worldwide market owing to the perfect quality , reasonable design , high automatic degree , easy operation , please contact Mr John Yu to get more details information . Tel : +86 (0) 13301561523 ; Email: admin@xinda-machinery.com

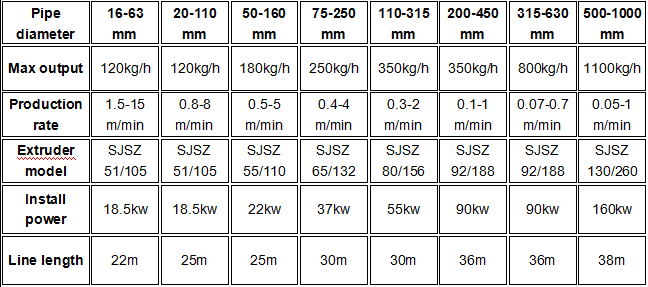

Technical Parameters of PVC UPVC pipe machine:



According to the different pipe diameter , the PVC pipe production line equip with different extruder , normally , 63-160mm PVC pipe making machine equip with SJSZ65/132 twin screw extruder , the twin screw materials adopt the top quality 38CrMoAl with carburizing treatment, in order to increase the wear resistance . normally ,the PVC pipe diameter 63-160mm equip with the SJSZ65/132 twin screw extruder , the stainless steel vacuum calibration tank and cooling tank , the main motor adopt the quality SIEMENS brand , the converter adopt the TECO or ABB brand . the hauling off unit has 2-claws , 3-claws ,4-claws ,6-claws and equip with the converter speed control . the cutter equip with the planetary cutter with PLC control system . it can set different length at customer’s demands and cut automatic . the cutter equip with electric control and pneumatic control ensure the accuracy length . it also equip with the dust collection system for reuse .

production process :

PVC + assistant raw materials mix – automatic feeder – force feeding system – twin conical extruder— extrusion mould – calibration sleeve – spray cooling vacuum tank – cooling water tank – hauling — printer – cutter – stacker .

free service :

①supply the workshop design for new investor
②supply all the raw materials if need .
③supply the different cost production formula .
④supply installation in customer’s factory , training workers , test run till all things run smoothly .
⑤Supply long-term technology support for customers continual improvement .

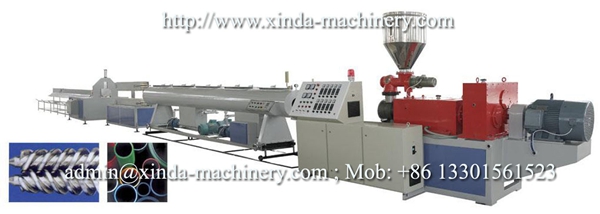

63-160mm PVC pipe production line

63-160mm PVC pipe production machine

PVC pipe making machine 60-110mm
PVC pipe making machine 60-110mm
PVC pipe making machine
PVC pipe making machine
20-50mm double output
PVC pipe making machine
PVC pipe making machine
PVC pipe production line
PVC pipe production line
PVC pipe extruder machine
PVC pipe extruder machine
PVC pipe line
PVC pipe line

test running video :
